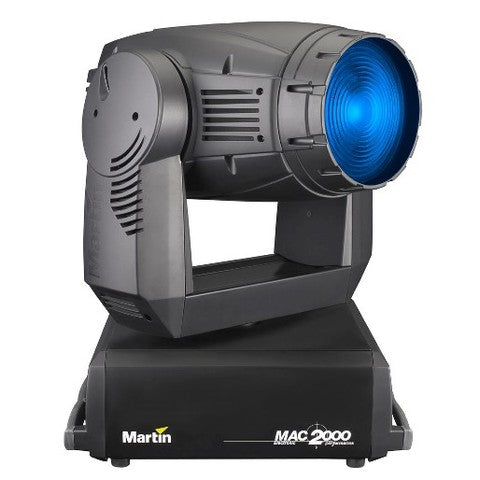

MAC 2000 WASH LIGHT FIXTURE COMPLETE

The MAC 2000 Wash is the industry´s wash light of choice. It is exceptionally powerful with a clean, even, soft-edged beam, a motorized zoom and rich CMY color mixing supplemented with two color wheels.

FEATURES

• 1200 W short arc discharge lamp
• CMY color mixing system
• 2 x 4 position color wheels plus open
• Variable CTC
• Strobe effect up to 10 Hz, pulse effects, instant open and blackout
• Motorized zoom
• Lens Options: PC, Fresnel and super-wide (all included) and micro-Fresnel
• Mechanical dimming
• 12.5-95° beam angle
• Pan and tilt range of 540°/267°
• Modular design for easy maintenance and servicing
• Electronic ballast with hot lamp restrike and flicker free light
• Variable fan control for quieter operation

SPECIFICATIONS
PHYSICAL

• Length: 408 mm
• Width: 490 mm
• Height: 750 mm, head straight up
• Weight: 34 kg

DYNAMIC EFFECTS

• Color mixing: CMY, independently variable 0 - 100%
• Color correction: 0 - 178 mireds, continuously variable
• Color wheel: 2 wheels, each with 4 interchangeable filters + open position
• Mechanical dimmer: 0 - 100%
• Shutter: Strobe effect up to 10 Hz, pulse effects, instant open and blackout
• Zoom: Motorized
• Hyper mode: Narrow beam with diffuser removed
• Pan: 540°
• Tilt: 267°

CONTROL AND PROGRAMMING

• DMX channels: 19/21
• Setting and addressing: Control panel with LED display
• 16-bit control: Pan & tilt
• Movement control options: Tracking and vector
• Protocol: USITT DMX512/1990
• Receiver: Opto-isolated RS-485
• Firmware update: Serial upload via DMX link

LAMP

• Type: 1200 W short-arc discharge
• Fitted as standard: Philips MSR 1200 SA/DE Gold
• Color temperature: 6000 K
• CRI (Color rendering index): >85
• Average lifetime: 750 hours
• Hot restrike: Yes
• Socket: Double-ended SFc 10-4 with key
• Ballast: Electronic
• Approved alternative lamp(s): Osram HTI 1200 D7/60 SharXS

OPTICS

• Beam angle: PC lens 12.5° - 37°, Fresnel lens 13° - 40°, multi-array super-wide lens 80° - 95°, 1/10 peak angles, with 50 mm (2.0 in.) aperture
• CONSTRUCTION

• Color(s): Black
• Housing: UV-resistant fiber-reinforced composite
• Reflector: Glass, cold light
• Protection rating: IP20

INSTALLATION

• Mounting points: 4 pairs of 1/4-turn locks, 45° orientation possible
• Orientation: Any

CONNECTIONS

• AC power input: 3 m integral cable without power plug
• DMX data in/out: 3-pin and 5-pin locking XLR

ELECTRICAL

• AC power: 100-120/208-240 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Main fuse: 15 AT (x 2, for use with 208-240 V power)
• Main fuse: 20 AT (x 2, for use with 100-120 V power)

TYPICAL POWER AND CURRENT

• 100 V, 60 Hz: 1580 W, 19.8 A, PF 0.815
• 120 V, 60 Hz: 1520 W, 17.7 A
• 208 V, 60 Hz: 1450 W, 10.2 A
• 220 V, 50 Hz: 1445 W, 9.1 A, PF 0.699
• 230 V, 60 Hz: 1460 W, 9.4 A
• 250 V, 50 Hz: 1450 W, 8.8 A
• Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

THERMAL

• Cooling: Filtered forced air (temperature-regulated)
• Maximum ambient temperature (Ta max.): 40° C
• Maximum surface temperature, steady state, Ta=40° C: 140° C
• Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 5120 BTU/hr.

APPROVALS

• EU safety: EN 60598-2-17
• EU EMC: EN 55 015, EN 55 103-1, EN 61 547
• US safety: UL 1573
• Canadian safety: CAN/CSA E60598-1, CAN/CSA E598-2-17
