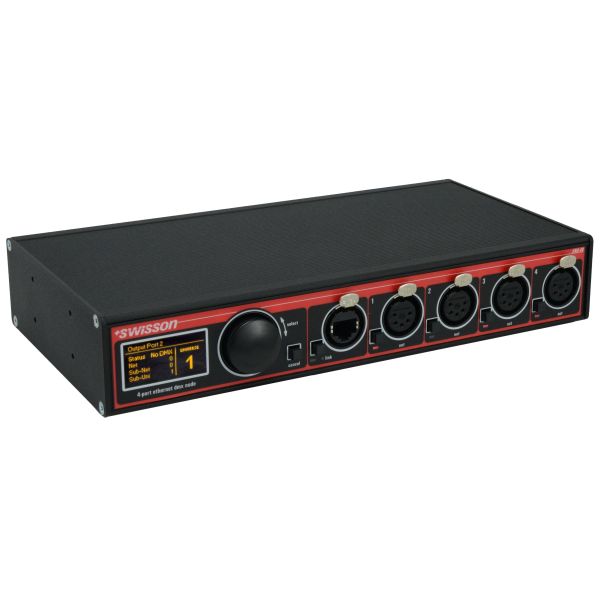

SWISSON 4-PORT NODE (RACKMOUNT) COMPLETE
Rental Price Regular price$150.00
/
Prices Are Subject To Change Without Notice
"The XND-4 and Since most larger lighting consoles can send Art-Net data, the XND-4 or XND-8 is all you need to make use of your console's networking capabilities. This allows you to transmit a large number of universes over a single network cable. In some cases, users can also rely on existing network infrastructure.
Additionally, the XND is perfect for sending DMX data to your fixtures from your computer or even a mobile device. Many lighting control programs for PC or Mac natively support Art-Net, and thanks to the XND's DHCP capability, you can also leave the network configuration to your workplace network infrastructure.
With the 128x64 pixel OLED display, configuring the network and setting the Art-Net or sACN addressing is easy, even by hand, and helpful status information is visible at all times.
When two controllers send data to the same universe, the XND automatically merges the data, making it easier to integrate emergency control. This function can also prove to be extremely helpful when testing during commissioning.
Technical data:
Additionally, the XND is perfect for sending DMX data to your fixtures from your computer or even a mobile device. Many lighting control programs for PC or Mac natively support Art-Net, and thanks to the XND's DHCP capability, you can also leave the network configuration to your workplace network infrastructure.
With the 128x64 pixel OLED display, configuring the network and setting the Art-Net or sACN addressing is easy, even by hand, and helpful status information is visible at all times.
When two controllers send data to the same universe, the XND automatically merges the data, making it easier to integrate emergency control. This function can also prove to be extremely helpful when testing during commissioning.
- Art-Net and sACN to DMX converter for up to 8 independent universes
- Art-Net I, II and 3 (DMX and RDM)
- sACN release and draft version
- Up to 8 individually optically isolated DMX outputs
- Graphical display and encoder for easy configuration and display of precise status information
- Quick access button for each DMX output port allows you to set the Art-Net or sACN universe directly
- Neutrik powerCON input and output
- Universal power supply
Technical data:
- Material: metal
- Protocol: ArtNet I, II, III
- Dimensions: 482 (19"") x 133.5 x 44.5 mm (WxDxH)
- Type: ArtNet to DMX converter
- Signal distribution: 1x ArtNet in (RJ45/EtherCon), 4x DMX out (5-pin)
- Color: red/black
- Voltage: 100 - 240V, 50/60Hz
- Power supply: internal
- Weight: 1.5kg
